| Part Number | Download | Status | Circuit | Type | Process |
ESDYes/No |
VDSV |
VGSV |
IDA |
VGS(TH)V |
RDS(mΩ)@VGS10V Typ |
RDS(mΩ)@VGS10V Max |
RDS(mΩ)@VGS4.5V Typ |
RDS(mΩ)@VGS4.5V Max |
Package |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
AD-CJAN012SD04AH |
 |
Active |
 |

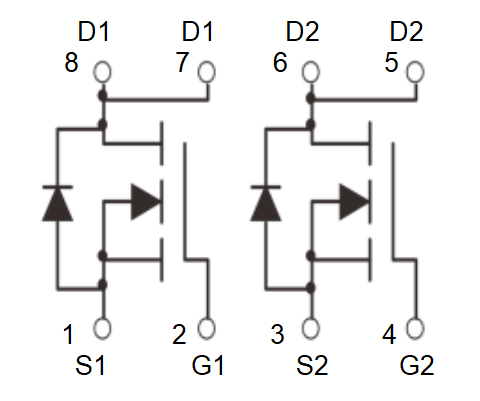

Dual-N |
SGT |
No |
40 |
±20 |
40 |
2.5~3.5 |
9.1 |
12 |
- |
- |
PDFN5×6-8L-A |
|
AD-CJAN013SD06AL |
|
Active |
|
Dual-N |
SGT |
No |
60 |
±20 |
40 |
1.5~2.6 |
9.5 |
13 |
- |
- |
PDFN5×6-8L-A |
|
AD-CJAN020SD10BH |
|
Active |
|
Dual-N |
SGT |
No |
100 |
±20 |
30 |
2~4 |
15.5 |
20 |
- |
- |
PDFN5×6-8L-A |
|
AD-CJAN026SD10AL |
|
Active |
|
Dual-N |
SGT |
No |
100 |
±20 |
25 |
1.5~2.5 |
21 |
26 |
27 |
38 |
PDFN5×6-8L-A |
|
AD-CJAN5R8SD04CH |
|
Active |
|
Dual-N |
SGT |
No |
40 |
±20 |
40 |
2.2~3.8 |
4.5 |
5.8 |
- |
- |
PDFN5×6-8L-A |
|
AD-CJAN7R0SD04AH |
|
Active |
|
Dual-N |
SGT |
No |
40 |
±20 |
40 |
2.5~3.5 |
5.6 |
7 |
- |
- |
PDFN5×6-8L-A |
|
AD-CJAN9R0SD04CL |
|
Active |
|
Dual-N |
SGT |
No |
40 |
±20 |
40 |
1.3~2.5 |
7 |
9 |
- |
- |
PDFN5×6-8L-A |
|
AD-CJAB011SN06AL |
|
Active |
 |
Single-N |
SGT |
No |
60 |
±20 |
45 |
1.5~2.6 |
9 |
11 |
12 |
16 |
PDFN3.3×3.3-8L |
|
AD-CJAB7R4SN04CL |
|
Active |
|
Single-N |
SGT |
No |
40 |
±20 |
51 |
1.3~2.5 |
6.3 |
7.4 |
10.2 |
12.5 |
PDFN3.3×3.3-8L |
|
AD-CJAB9R0SN06AL |
|
Active |
|
Single-N |
SGT |
No |
60 |
±20 |
55 |
1.3~2.5 |
6.7 |
9 |
10 |
13.5 |
PDFN3.3×3.3-8L |
|
AD-CJAN011SN06AL |
|
Active |
|
Single-N |
SGT |
No |
60 |
±20 |
48 |
1.5~2.6 |
8.3 |
11 |
11 |
16 |
PDFN5×6-8L |
|
AD-CJAN017SN10BH |
|
Active |
|
Single-N |
SGT |
No |
100 |
±20 |
42 |
2~4 |
14.3 |
17 |
- |
- |
PDFN5×6-8L |
|
AD-CJAN7R4SN04CL |
|
Active |
|
Single-N |
SGT |
No |
40 |
±20 |
57 |
1.3~2.5 |
6.1 |
7.4 |
9.9 |
12.5 |
PDFN5×6-8L |
|
AD-CJAN9R0SN06AL |
|
Active |
 |
Single-N |
SGT |
No |
60 |
±20 |
61 |
1.3~2.5 |
6.7 |
9 |
9.2 |
13 |
PDFN5×6-8L |
|
AD-CJAN9R0SN10AL |
|
Active |
|
Single-N |
SGT |
No |
100 |
±20 |
62 |
1.3~2.5 |
7.2 |
9 |
9.1 |
11.4 |
PDFN5×6-8L |
|
AD-CJAB017SN10BH |
|
Active |
 |
Single-N |
SGT |
No |
100 |
±20 |
40 |
2~4 |
14.5 |
17 |
- |
- |
PDFN3.3×3.3-8L |
|
AD-CJAB3R2SN04AH |
|
Active |
|
Single-N |
SGT |
No |
40 |
±20 |
91 |
2.2~3.8 |
2.6 |
3.2 |
- |
- |
PDFN3.3×3.3-8L |
|
AD-CJAB3R2SN04AL |
|
Active |
|
Single-N |
SGT |
No |
40 |
±20 |
93 |
1.2~2.3 |
2.3 |
3.2 |
3.6 |
5 |
PDFN3.3×3.3-8L |
|
AD-CJAB5R4SN04AH |
|
Active |
|
Single-N |
SGT |
No |
40 |
±20 |
70 |
2.5~3.5 |
4.3 |
5.4 |
- |
- |
PDFN3.3×3.3-8L |
|
AD-CJAC3R2SN04AL |
|
Active |
|
Single-N |
SGT |
No |
40 |
±20 |
102 |
1.2~2.3 |
2.4 |
3.2 |
3.6 |
4.8 |
PDFN5×6-8L |
